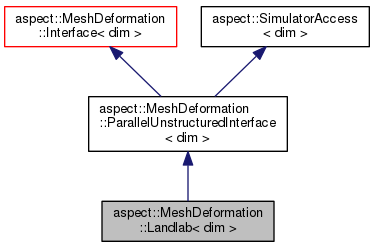

Inheritance diagram for aspect::MeshDeformation::Landlab< dim >:

Public Member Functions
void	initialize () override

void	update () override

virtual std::vector< Tensor< 1, dim > >	compute_updated_velocities_at_points (const std::vector< std::vector< double >> &current_solution_at_points) const override

void	compute_initial_deformation_as_constraints (const Mapping< dim > &mapping, const DoFHandler< dim > &mesh_deformation_dof_handler, const types::boundary_id boundary_indicator, AffineConstraints< double > &constraints) const override

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::MeshDeformation::ParallelUnstructuredInterface< dim >
virtual void	compute_velocity_constraints_on_boundary (const DoFHandler< dim > &mesh_deformation_dof_handler, AffineConstraints< double > &mesh_velocity_constraints, const std::set< types::boundary_id > &boundary_ids) const override

Public Member Functions inherited from aspect::MeshDeformation::Interface< dim >
virtual bool	needs_surface_stabilization () const

virtual Tensor< 1, dim >	compute_initial_deformation_on_boundary (const types::boundary_id boundary_indicator, const Point< dim > &position) const

virtual double	boundary_composition (const types::boundary_id boundary_indicator, const Point< dim > &position, const unsigned int compositional_field) const

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	save (std::map< std::string, std::string > &status_strings) const

virtual void	load (const std::map< std::string, std::string > &status_strings)

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const PrescribedDilation::Manager< dim > &	get_prescribed_dilation_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free () const

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

const StokesSolver::Interface< dim > &	get_stokes_solver () const

const PrescribedSolution::Manager< dim > &	get_prescribed_solution () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Additional Inherited Members
Protected Member Functions inherited from aspect::MeshDeformation::ParallelUnstructuredInterface< dim >
void	set_evaluation_points (const std::vector< Point< dim >> &evaluation_points)

std::vector< std::vector< double > >	evaluate_aspect_solution_at_points () const

LinearAlgebra::Vector	interpolate_external_vector_field_to_surface_support_points (const std::vector< Tensor< 1, dim >> &velocities) const

Protected Attributes inherited from aspect::MeshDeformation::ParallelUnstructuredInterface< dim >
std::vector< Point< dim > >	evaluation_points

std::unique_ptr< Utilities::MPI::RemotePointEvaluation< dim, dim > >	remote_point_evaluator

std::vector< DofToEvalPointData >	map_dof_to_eval_point

Detailed Description

template<int dim>
class aspect::MeshDeformation::Landlab< dim >

A plugin based on the ParallelUnstructuredInterface that loads a Python script that runs Landlab. This class passes information to it via a specific set of functions that are explicitly called in the Python script.

Definition at line 44 of file landlab.h.

Member Function Documentation

§ initialize()

template<int dim>

void aspect::MeshDeformation::Landlab< dim >::initialize ( )

overridevirtual

Initialize function, this creates the Python interpreter and and loads the Landlab Python module.

Reimplemented from aspect::Plugins::InterfaceBase.

§ update()

template<int dim>

void aspect::MeshDeformation::Landlab< dim >::update ( )

overridevirtual

Update function. This sets the evaluation points and creates the communication data structures.

Reimplemented from aspect::Plugins::InterfaceBase.

§ compute_updated_velocities_at_points()

template<int dim>

virtual std::vector<Tensor<1,dim> > aspect::MeshDeformation::Landlab< dim >::compute_updated_velocities_at_points ( const std::vector< std::vector< double >> & current_solution_at_points ) const

overridevirtual

Call into the Landlab Python module to compute the updated velocities at the evaluation points.

Implements aspect::MeshDeformation::ParallelUnstructuredInterface< dim >.

§ compute_initial_deformation_as_constraints()

template<int dim>

void aspect::MeshDeformation::Landlab< dim >::compute_initial_deformation_as_constraints	(	const Mapping< dim > &	mapping,
		const DoFHandler< dim > &	mesh_deformation_dof_handler,
		const types::boundary_id	boundary_indicator,
		AffineConstraints< double > &	constraints
	)		const

overridevirtual

Compute the initial deformation by querying the Landlab Python module for the initial topography at the evaluation points, interpolating to support points, and creating corresponding constraints.

Reimplemented from aspect::MeshDeformation::Interface< dim >.

§ declare_parameters()

template<int dim>

static void aspect::MeshDeformation::Landlab< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare parameters.

§ parse_parameters()

template<int dim>

void aspect::MeshDeformation::Landlab< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Parse parameters.

Reimplemented from aspect::Plugins::InterfaceBase.

The documentation for this class was generated from the following file:

/home/bob/source/include/aspect/mesh_deformation/landlab.h
