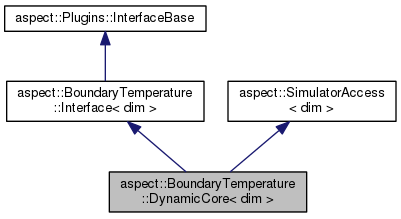

Inheritance diagram for aspect::BoundaryTemperature::DynamicCore< dim >:

Classes
struct	str_data_OES

Public Member Functions
	DynamicCore ()

void	update () override

const internal::CoreData &	get_core_data () const

bool	is_OES_used () const

double	boundary_temperature (const types::boundary_id boundary_indicator, const Point< dim > &location) const override

double	minimal_temperature (const std::set< types::boundary_id > &fixed_boundary_ids) const override

double	maximal_temperature (const std::set< types::boundary_id > &fixed_boundary_ids) const override

void	parse_parameters (ParameterHandler &prm) override

Public Member Functions inherited from aspect::Plugins::InterfaceBase
virtual	~InterfaceBase ()=default

virtual void	initialize ()

virtual void	save (std::map< std::string, std::string > &status_strings) const

virtual void	load (const std::map< std::string, std::string > &status_strings)

Public Member Functions inherited from aspect::SimulatorAccess< dim >
	SimulatorAccess ()

	SimulatorAccess (const Simulator< dim > &simulator_object)

virtual	~SimulatorAccess ()

virtual void	initialize_simulator (const Simulator< dim > &simulator_object)

const Introspection< dim > &	introspection () const

const Simulator< dim > &	get_simulator () const

const Parameters< dim > &	get_parameters () const

SimulatorSignals< dim > &	get_signals () const

MPI_Comm	get_mpi_communicator () const

TimerOutput &	get_computing_timer () const

const ConditionalOStream &	get_pcout () const

double	get_time () const

double	get_timestep () const

double	get_old_timestep () const

unsigned int	get_timestep_number () const

const TimeStepping::Manager< dim > &	get_timestepping_manager () const

unsigned int	get_nonlinear_iteration () const

const parallel::distributed::Triangulation< dim > &	get_triangulation () const

double	get_volume () const

const Mapping< dim > &	get_mapping () const

std::string	get_output_directory () const

unsigned int	get_checkpoint_id () const

bool	include_adiabatic_heating () const

bool	include_latent_heat () const

bool	include_melt_transport () const

int	get_stokes_velocity_degree () const

double	get_adiabatic_surface_temperature () const

double	get_surface_pressure () const

bool	convert_output_to_years () const

unsigned int	get_pre_refinement_step () const

unsigned int	n_compositional_fields () const

double	get_end_time () const

void	get_refinement_criteria (Vector< float > &estimated_error_per_cell) const

void	get_artificial_viscosity (Vector< float > &viscosity_per_cell, const bool skip_interior_cells=false) const

void	get_artificial_viscosity_composition (Vector< float > &viscosity_per_cell, const unsigned int compositional_variable) const

const LinearAlgebra::BlockVector &	get_current_linearization_point () const

const LinearAlgebra::BlockVector &	get_solution () const

const LinearAlgebra::BlockVector &	get_old_solution () const

const LinearAlgebra::BlockVector &	get_old_old_solution () const

const LinearAlgebra::BlockVector &	get_reaction_vector () const

const LinearAlgebra::BlockVector &	get_mesh_velocity () const

const DoFHandler< dim > &	get_dof_handler () const

const FiniteElement< dim > &	get_fe () const

const LinearAlgebra::BlockSparseMatrix &	get_system_matrix () const

const LinearAlgebra::BlockSparseMatrix &	get_system_preconditioner_matrix () const

const MaterialModel::Interface< dim > &	get_material_model () const

const GravityModel::Interface< dim > &	get_gravity_model () const

const InitialTopographyModel::Interface< dim > &	get_initial_topography_model () const

const std::shared_ptr< const InitialTopographyModel::Interface< dim > >	get_initial_topography_model_pointer () const

const GeometryModel::Interface< dim > &	get_geometry_model () const

const AdiabaticConditions::Interface< dim > &	get_adiabatic_conditions () const

bool	has_boundary_temperature () const

const BoundaryTemperature::Manager< dim > &	get_boundary_temperature_manager () const

const BoundaryConvectiveHeating::Manager< dim > &	get_boundary_convective_heating_manager () const

const BoundaryHeatFlux::Interface< dim > &	get_boundary_heat_flux () const

bool	has_boundary_composition () const

const BoundaryComposition::Manager< dim > &	get_boundary_composition_manager () const

const BoundaryTraction::Manager< dim > &	get_boundary_traction_manager () const

std::shared_ptr< const InitialTemperature::Manager< dim > >	get_initial_temperature_manager_pointer () const

const InitialTemperature::Manager< dim > &	get_initial_temperature_manager () const

std::shared_ptr< const InitialComposition::Manager< dim > >	get_initial_composition_manager_pointer () const

const InitialComposition::Manager< dim > &	get_initial_composition_manager () const

const std::set< types::boundary_id > &	get_fixed_temperature_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_heat_flux_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_convective_heating_boundary_indicators () const

const std::set< types::boundary_id > &	get_fixed_composition_boundary_indicators () const

const std::set< types::boundary_id > &	get_mesh_deformation_boundary_indicators () const

const BoundaryVelocity::Manager< dim > &	get_boundary_velocity_manager () const

const HeatingModel::Manager< dim > &	get_heating_model_manager () const

const MeshRefinement::Manager< dim > &	get_mesh_refinement_manager () const

const MeltHandler< dim > &	get_melt_handler () const

const VolumeOfFluidHandler< dim > &	get_volume_of_fluid_handler () const

const NewtonHandler< dim > &	get_newton_handler () const

const MeshDeformation::MeshDeformationHandler< dim > &	get_mesh_deformation_handler () const

const LateralAveraging< dim > &	get_lateral_averaging () const

const AffineConstraints< double > &	get_current_constraints () const

bool	simulator_is_past_initialization () const

double	get_pressure_scaling () const

bool	pressure_rhs_needs_compatibility_modification () const

bool	model_has_prescribed_stokes_solution () const

TableHandler &	get_statistics_object () const

const Postprocess::Manager< dim > &	get_postprocess_manager () const

unsigned int	n_particle_managers () const

const Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index) const

Particle::Manager< dim > &	get_particle_manager (const unsigned int particle_manager_index)

bool	is_stokes_matrix_free ()

const StokesMatrixFreeHandler< dim > &	get_stokes_matrix_free () const

RotationProperties< dim >	compute_net_angular_momentum (const bool use_constant_density, const LinearAlgebra::BlockVector &solution, const bool limit_to_top_faces=false) const

void	remove_nullspace (LinearAlgebra::BlockVector &solution, LinearAlgebra::BlockVector &distributed_stokes_solution) const

double	normalize_pressure (LinearAlgebra::BlockVector &vector) const

void	denormalize_pressure (const double pressure_adjustment, LinearAlgebra::BlockVector &vector) const

Static Public Member Functions
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::Plugins::InterfaceBase
static void	declare_parameters (ParameterHandler &prm)

Static Public Member Functions inherited from aspect::SimulatorAccess< dim >
static void	get_composition_values_at_q_point (const std::vector< std::vector< double >> &composition_values, const unsigned int q, std::vector< double > &composition_values_at_q_point)

Private Member Functions
void	read_data_OES ()

double	compute_OES (double t) const

internal::SolveTimeStepResult	solve_time_step () const

double	compute_dT (const double r) const

double	compute_Tc (const double r) const

double	compute_Ts (const double r) const

double	compute_solidus (const double X, const double pressure) const

double	compute_initial_Ri (const double T) const

double	compute_X (const double r) const

double	compute_mass (const double r) const

double	fun_Sn (const double B, const double R, const unsigned int n) const

double	compute_rho (const double r) const

double	compute_T (const double Tc, const double r) const

double	compute_pressure (const double r) const

double	compute_gravity_potential (const double r) const

std::pair< double, double >	compute_specific_heating (const double Tc) const

std::pair< double, double >	compute_radio_heating (const double Tc) const

std::pair< double, double >	compute_gravity_heating (const double Tc, const double r, const double X) const

std::pair< double, double >	compute_adiabatic_heating (const double Tc) const

std::pair< double, double >	compute_latent_heating (const double Tc, const double r) const

double	compute_heat_solution (const double Tc, const double r, const double X) const

double	compute_radioheating_rate () const

void	update_core_data ()

Private Attributes
internal::CoreData	core_data

double	inner_temperature

double	outer_temperature

types::boundary_id	inner_boundary_id

types::boundary_id	outer_boundary_id

double	init_dT_dt

double	init_dR_dt

double	init_dX_dt

bool	is_first_call

double	Rc

double	X_init

double	Delta

double	P_CMB

double	Tm0

double	Tm1

double	Tm2

double	Theta

bool	composition_dependency

bool	use_bw11

double	K0

double	Alpha

double	Rho_0

double	Rho_cen

double	Lh

double	Rh

double	Beta_c

double	k_c

double	Cp

unsigned int	n_radioheating_elements

std::vector< double >	heating_rate

std::vector< double >	half_life

std::vector< double >	initial_concentration

double	L

double	D

double	Mc

unsigned int	max_steps

double	dTa

std::string	name_OES

std::vector< struct str_data_OES >	data_OES

Detailed Description

template<int dim>
class aspect::BoundaryTemperature::DynamicCore< dim >

A class that implements a temperature boundary condition for a spherical shell geometry in which the temperature at the outer surfaces are constant and the core-mantle boundaries (CMB) temperature is calculated by core energy balance. The formulation of the core energy balance is from [2] .

Definition at line 106 of file dynamic_core.h.

Constructor & Destructor Documentation

§ DynamicCore()

template<int dim>

aspect::BoundaryTemperature::DynamicCore< dim >::DynamicCore ( )

Constructor

Member Function Documentation

§ update()

template<int dim>

void aspect::BoundaryTemperature::DynamicCore< dim >::update ( )

overridevirtual

This function update the core-mantle boundary (CMB) temperature by the core energy balance solver using the core-mantle boundary heat flux.

Reimplemented from aspect::Plugins::InterfaceBase.

§ get_core_data()

template<int dim>

const internal::CoreData& aspect::BoundaryTemperature::DynamicCore< dim >::get_core_data ( ) const

Pass core data to other modules

§ is_OES_used()

template<int dim>

bool aspect::BoundaryTemperature::DynamicCore< dim >::is_OES_used ( ) const

Check if other energy source in the core is in use. The 'other energy source' is used for external core energy source. For example if someone want to test the early lunar core powered by precession (Dwyer, C. A., et al. (2011). "A long-lived lunar dynamo driven by continuous mechanical stirring." Nature 479(7372): 212-214.)

§ boundary_temperature()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::boundary_temperature	(	const types::boundary_id	boundary_indicator,
		const Point< dim > &	location
	)		const

overridevirtual

Return the temperature that is to hold at a particular location on the boundary of the domain. This function returns the temperatures at the inner and outer boundaries.

Parameters

boundary_indicator	The boundary indicator of the part of the boundary of the domain on which the point is located at which we are requesting the temperature.
location	The location of the point at which we ask for the temperature.

Implements aspect::BoundaryTemperature::Interface< dim >.

§ minimal_temperature()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::minimal_temperature ( const std::set< types::boundary_id > & fixed_boundary_ids ) const

overridevirtual

Return the minimal temperature on that part of the boundary on which Dirichlet conditions are posed.

This value is used in computing dimensionless numbers such as the Nusselt number indicating heat flux.

Implements aspect::BoundaryTemperature::Interface< dim >.

§ maximal_temperature()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::maximal_temperature ( const std::set< types::boundary_id > & fixed_boundary_ids ) const

overridevirtual

Return the maximal temperature on that part of the boundary on which Dirichlet conditions are posed.

This value is used in computing dimensionless numbers such as the Nusselt number indicating heat flux.

Implements aspect::BoundaryTemperature::Interface< dim >.

§ declare_parameters()

template<int dim>

static void aspect::BoundaryTemperature::DynamicCore< dim >::declare_parameters ( ParameterHandler & prm )

static

Declare the parameters this class takes through input files. This class declares the inner and outer boundary temperatures.

§ parse_parameters()

template<int dim>

void aspect::BoundaryTemperature::DynamicCore< dim >::parse_parameters ( ParameterHandler & prm )

overridevirtual

Read the parameters this class declares from the parameter file.

Reimplemented from aspect::Plugins::InterfaceBase.

§ read_data_OES()

template<int dim>

void aspect::BoundaryTemperature::DynamicCore< dim >::read_data_OES ( )

private

§ compute_OES()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_OES ( double t ) const

private

§ solve_time_step()

template<int dim>

internal::SolveTimeStepResult aspect::BoundaryTemperature::DynamicCore< dim >::solve_time_step ( ) const

private

Solve core energy balance for each time step. When solving the change in core-mantle boundary temperature T, inner core radius R, and light element (e.g. S, O, Si) composition X, the following relations have to be respected:

At the inner core boundary the adiabatic temperature should be equal to solidus temperature
The following energy production rates should be balanced in the core: Heat flux at core-mantle boundary Q Specific heat Qs*dT/dt Radioactive heating Qr Gravitational contribution Qg*dR/dt Latent heat Ql*dR/dt So that Q+Qs*dT/dt+Qr+Qg*dR/dt*Ql*dR/dt=0
The light component composition X depends on inner core radius (See function compute_X() ), and core solidus may dependent on X as well. This becomes a small nonlinear problem. Directly iterate through the above three equations doesn't converge well. Alternatively we solve the inner core radius using the bisection method.

At the conditions of the Earth's core, an inner core is forming at the center of the Earth and surrounded by a liquid outer core. However, the core solidus is influenced by light components (e.g. S) and its slope is very close to an adiabat. So there is an alternative scenario that the crystallization happens first at the core mantle boundary instead of at the center, which is called a 'snowing core' (Stewart, A. J., et al. (2007). "Mars: a new core-crystallization regime." Science 316(5829): 1323-1325.). This also provides a valid solution for the solver. The current code treats the normal core scenario and throws for the unsupported snowing core case.

Returns: A tuple containing the updated X, T, and R values.

§ compute_dT()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_dT ( const double r ) const

private

Compute the difference between solidus and adiabatic temperature at inner core boundary for a given inner core radius r.

§ compute_Tc()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_Tc ( const double r ) const

private

Use energy balance to calculate core mantle boundary temperature with a given inner core radius r.

§ compute_Ts()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_Ts ( const double r ) const

private

Get the solidus temperature at inner core boundary with a given inner core radius r.

§ compute_solidus()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_solidus	(	const double	X,
		const double	pressure
	)		const

private

Compute the core solidus at a given light element concentration X (in wt.%) and pressure pressure.

§ compute_initial_Ri()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_initial_Ri ( const double T ) const

private

Get initial inner core radius with given initial core mantle temperature T.

§ compute_X()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_X ( const double r ) const

private

Get the light element concentration (in wt.%) in the outer core from given inner core radius r.

§ compute_mass()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_mass ( const double r ) const

private

Compute the core mass inside a certain radius r.

§ fun_Sn()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::fun_Sn	(	const double	B,
		const double	R,
		const unsigned int	n
	)		const

private

Calculate Sn(B,R), referring to [2] .

§ compute_rho()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_rho ( const double r ) const

private

Calculate density at given radius r.

§ compute_T()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_T	(	const double	Tc,
		const double	r
	)		const

private

Calculate the core temperature at given radius r and temperature at CMB Tc.

§ compute_pressure()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_pressure ( const double r ) const

private

Calculate pressure at given radius r

§ compute_gravity_potential()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_gravity_potential ( const double r ) const

private

Calculate the gravitational potential at given radius r

§ compute_specific_heating()

template<int dim>

std::pair<double,double> aspect::BoundaryTemperature::DynamicCore< dim >::compute_specific_heating ( const double Tc ) const

private

Calculate energy (Qs) and entropy (Es) change rate factor (regarding the core cooling rated Tc/dt) for a given core-mantle boundary (CMB) temperature Tc

Returns: A pair of (Qs, Es), i.e., the energy change rate factor first and the entropy change rate factor second.

§ compute_radio_heating()

template<int dim>

std::pair<double,double> aspect::BoundaryTemperature::DynamicCore< dim >::compute_radio_heating ( const double Tc ) const

private

Calculate energy (Qr) and entropy (Er) change rate factor (regarding the radioactive heating rate H) for a given CMB temperature Tc

Returns: A pair of (Qr, Er), i.e., the energy change rate factor first and the entropy change rate factor second.

§ compute_gravity_heating()

template<int dim>

std::pair<double,double> aspect::BoundaryTemperature::DynamicCore< dim >::compute_gravity_heating	(	const double	Tc,
		const double	r,
		const double	X
	)		const

private

Calculate energy (Qg) and entropy (Eg) change rate factor (regarding the inner core growth rate dR/dt) for a given Tc (CMB temperature), r (inner core radius), and X (light element concentration)

Returns: A pair of (Qg, Eg), i.e., the energy change rate factor first and the entropy change rate factor second.

§ compute_adiabatic_heating()

template<int dim>

std::pair<double,double> aspect::BoundaryTemperature::DynamicCore< dim >::compute_adiabatic_heating ( const double Tc ) const

private

Calculate energy (Qk) and entropy (Ek) change rate factor (regarding the core cooling rate Tc/dt) for a given Tc (CMB temperature)

Returns: A pair of (Qk, Ek), i.e., the energy change rate factor first and the entropy change rate factor second.

§ compute_latent_heating()

template<int dim>

std::pair<double,double> aspect::BoundaryTemperature::DynamicCore< dim >::compute_latent_heating	(	const double	Tc,
		const double	r
	)		const

private

Calculate energy (Ql) and entropy (El) change rate factor (regarding the inner core growth rate dR/dt) for a given Tc (CMB temperature) and r (inner core radius)

Returns: A pair of (Ql, El), i.e., the energy change rate factor first and the entropy change rate factor second.

§ compute_heat_solution()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_heat_solution	(	const double	Tc,
		const double	r,
		const double	X
	)		const

private

Calculate entropy of heat of solution Eh for a given Tc (CMB temperature), r (inner core radius), and X (light element concentration)

§ compute_radioheating_rate()

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::compute_radioheating_rate ( ) const

private

return radiogenic heating rate at the current time

§ update_core_data()

template<int dim>

void aspect::BoundaryTemperature::DynamicCore< dim >::update_core_data ( )

private

Update the data of the core dynamic simulation, the data will be used in the next timestep and for postprocessing.

Member Data Documentation

§ core_data

template<int dim>

internal::CoreData aspect::BoundaryTemperature::DynamicCore< dim >::core_data

private

Data for core energy balance it get updated each time step.

Definition at line 190 of file dynamic_core.h.

§ inner_temperature

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::inner_temperature

private

Temperature at the inner boundary.

Definition at line 195 of file dynamic_core.h.

§ outer_temperature

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::outer_temperature

private

Temperatures at the outer boundaries.

Definition at line 200 of file dynamic_core.h.

§ inner_boundary_id

template<int dim>

types::boundary_id aspect::BoundaryTemperature::DynamicCore< dim >::inner_boundary_id

private

Boundary indicators of the spherical shell.

Definition at line 205 of file dynamic_core.h.

§ outer_boundary_id

template<int dim>

types::boundary_id aspect::BoundaryTemperature::DynamicCore< dim >::outer_boundary_id

private

Definition at line 206 of file dynamic_core.h.

§ init_dT_dt

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::init_dT_dt

private

Initial CMB temperature changing rate

Definition at line 211 of file dynamic_core.h.

§ init_dR_dt

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::init_dR_dt

private

Initial inner core radius changing rate

Definition at line 216 of file dynamic_core.h.

§ init_dX_dt

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::init_dX_dt

private

Initial light composition changing rate

Definition at line 221 of file dynamic_core.h.

§ is_first_call

template<int dim>

bool aspect::BoundaryTemperature::DynamicCore< dim >::is_first_call

private

Flag for determining the initial call for update().

Definition at line 226 of file dynamic_core.h.

§ Rc

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Rc

private

Core radius

Definition at line 231 of file dynamic_core.h.

§ X_init

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::X_init

private

Initial light composition concentration

Definition at line 236 of file dynamic_core.h.

§ Delta

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Delta

private

Partition coefficient of the light element

Definition at line 241 of file dynamic_core.h.

§ P_CMB

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::P_CMB

private

Pressure at the core mantle boundary

Definition at line 246 of file dynamic_core.h.

§ Tm0

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Tm0

private

Parameters for core solidus following: if not dependent on composition Tm(p)= Tm0*(1-Theta)*(1+Tm1*p+Tm2*p^2) if depend on composition X Tm(p)= Tm0*(1-Theta*X)*(1+Tm1*p+Tm2*p^2)

Definition at line 255 of file dynamic_core.h.

§ Tm1

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Tm1

private

Definition at line 256 of file dynamic_core.h.

§ Tm2

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Tm2

private

Definition at line 257 of file dynamic_core.h.

§ Theta

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Theta

private

Definition at line 258 of file dynamic_core.h.

§ composition_dependency

template<int dim>

bool aspect::BoundaryTemperature::DynamicCore< dim >::composition_dependency

private

Definition at line 259 of file dynamic_core.h.

§ use_bw11

template<int dim>

bool aspect::BoundaryTemperature::DynamicCore< dim >::use_bw11

private

If using the Fe-FeS system solidus from Buono & Walker (2011) instead.

Definition at line 264 of file dynamic_core.h.

§ K0

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::K0

private

Compressibility at zero pressure

Definition at line 270 of file dynamic_core.h.

§ Alpha

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Alpha

private

Thermal expansivity

Definition at line 275 of file dynamic_core.h.

§ Rho_0

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Rho_0

private

Density at zero pressure

Definition at line 280 of file dynamic_core.h.

§ Rho_cen

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Rho_cen

private

Density at the center of the planet

Definition at line 285 of file dynamic_core.h.

§ Lh

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Lh

private

Latent heat of fusion

Definition at line 290 of file dynamic_core.h.

§ Rh

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Rh

private

Heat of reaction

Definition at line 295 of file dynamic_core.h.

§ Beta_c

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Beta_c

private

Compositional expansion coefficient

Definition at line 300 of file dynamic_core.h.

§ k_c

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::k_c

private

Heat conductivity of the core

Definition at line 305 of file dynamic_core.h.

§ Cp

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Cp

private

Heat capacity

Definition at line 310 of file dynamic_core.h.

§ n_radioheating_elements

template<int dim>

unsigned int aspect::BoundaryTemperature::DynamicCore< dim >::n_radioheating_elements

private

Number of radioheating element in core

Definition at line 315 of file dynamic_core.h.

§ heating_rate

template<int dim>

std::vector<double> aspect::BoundaryTemperature::DynamicCore< dim >::heating_rate

private

Heating rates of different elements

Definition at line 320 of file dynamic_core.h.

§ half_life

template<int dim>

std::vector<double> aspect::BoundaryTemperature::DynamicCore< dim >::half_life

private

Half life of different elements

Definition at line 325 of file dynamic_core.h.

§ initial_concentration

template<int dim>

std::vector<double> aspect::BoundaryTemperature::DynamicCore< dim >::initial_concentration

private

Initial concentration of different elements

Definition at line 330 of file dynamic_core.h.

§ L

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::L

private

Two length scales in [2] .

Definition at line 335 of file dynamic_core.h.

§ D

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::D

private

Definition at line 336 of file dynamic_core.h.

§ Mc

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::Mc

private

Mass of the core

Definition at line 341 of file dynamic_core.h.

§ max_steps

template<int dim>

unsigned int aspect::BoundaryTemperature::DynamicCore< dim >::max_steps

private

Max iterations for the core energy balance solver.

Definition at line 346 of file dynamic_core.h.

§ dTa

template<int dim>

double aspect::BoundaryTemperature::DynamicCore< dim >::dTa

private

Temperature correction value for adiabatic

Definition at line 351 of file dynamic_core.h.

§ name_OES

template<int dim>

std::string aspect::BoundaryTemperature::DynamicCore< dim >::name_OES

private

Other energy source into the core, e.g. the mechanical stirring of the moon.

Definition at line 356 of file dynamic_core.h.

§ data_OES

template<int dim>

std::vector<struct str_data_OES> aspect::BoundaryTemperature::DynamicCore< dim >::data_OES

private

Definition at line 362 of file dynamic_core.h.

The documentation for this class was generated from the following file:

/home/bob/source/include/aspect/boundary_temperature/dynamic_core.h

Classes

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

template<int dim> class aspect::BoundaryTemperature::DynamicCore< dim >

Constructor & Destructor Documentation

§ DynamicCore()

Member Function Documentation

§ update()

§ get_core_data()

§ is_OES_used()

§ boundary_temperature()

§ minimal_temperature()

§ maximal_temperature()

§ declare_parameters()

§ parse_parameters()

§ read_data_OES()

§ compute_OES()

§ solve_time_step()

§ compute_dT()

§ compute_Tc()

§ compute_Ts()

§ compute_solidus()

§ compute_initial_Ri()

§ compute_X()

§ compute_mass()

§ fun_Sn()

§ compute_rho()

§ compute_T()

§ compute_pressure()

§ compute_gravity_potential()

§ compute_specific_heating()

§ compute_radio_heating()

§ compute_gravity_heating()

§ compute_adiabatic_heating()

§ compute_latent_heating()

§ compute_heat_solution()

§ compute_radioheating_rate()

§ update_core_data()

Member Data Documentation

§ core_data

§ inner_temperature

§ outer_temperature

§ inner_boundary_id

§ outer_boundary_id

§ init_dT_dt

§ init_dR_dt

§ init_dX_dt

§ is_first_call

§ Rc

§ X_init

§ Delta

§ P_CMB

§ Tm0

§ Tm1

§ Tm2

§ Theta

§ composition_dependency

§ use_bw11

§ K0

§ Alpha

§ Rho_0

§ Rho_cen

§ Lh

§ Rh

§ Beta_c

§ k_c

§ Cp

§ n_radioheating_elements

§ heating_rate

§ half_life

§ initial_concentration

§ L

§ D

§ Mc

§ max_steps

§ dTa

§ name_OES

template<int dim>
class aspect::BoundaryTemperature::DynamicCore< dim >
